Quick start
- Enter the finished wall length and height in feet.
- Enter the visible block face length and block height in inches from the supplier label or product sheet.
- Enter cap length in inches so the top row is estimated separately.
- Enter base trench depth and width in inches for the compacted base gravel estimate.
- Add waste for cuts, broken units, end pieces, curves, base cleanup, and small measuring mistakes.
Best uses
This guide works best for simple segmental block walls where you need a material count before comparing store lists, quotes, or delivery sizes.
- Estimate block count for simple segmental retaining walls.
- Plan cap blocks for the top course.
- Estimate gravel base volume.
- Compare block sizes before buying material.
What this calculator is solving

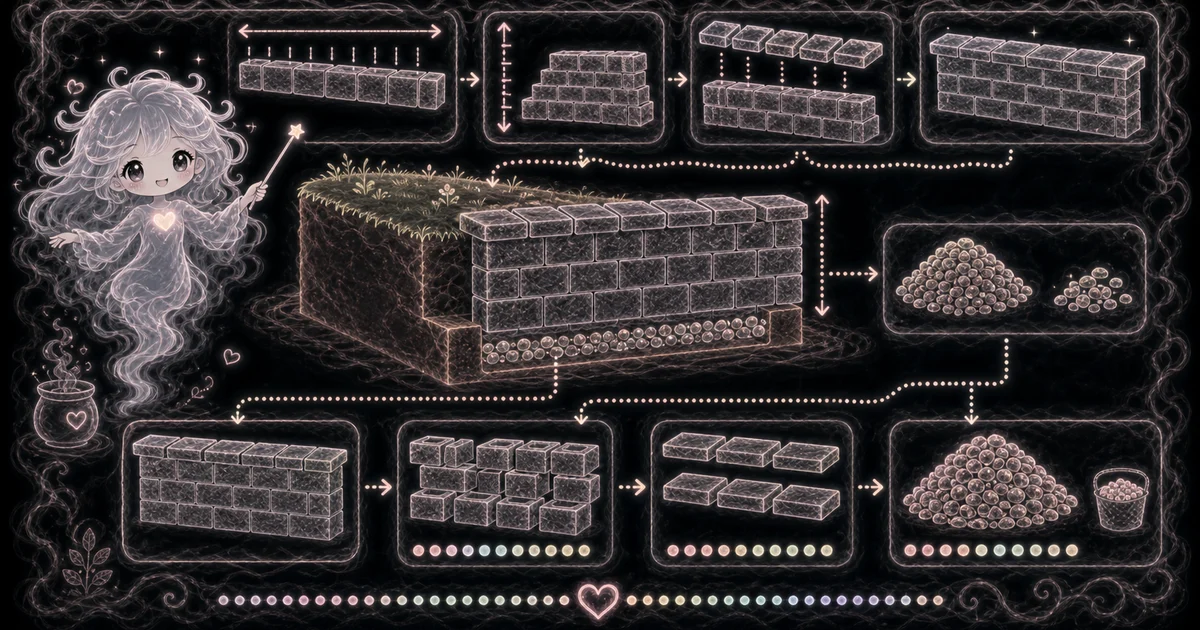

The Retaining Wall Calculator estimates materials for a simple segmental retaining wall. It counts wall blocks, cap blocks, courses, blocks per course, and base gravel from the dimensions you enter.
Match each input label on the calculator to wall length and height, segmental block face size, cap length, base trench size, and waste percent.
The formula in plain language
In plain language: Courses = ceiling(wall height x 12 / block height). Blocks per course = ceiling(wall length x 12 / block length). Wall blocks = courses x blocks per course x waste factor, rounded up. Cap blocks use wall length and cap length. Base gravel = wall length x base width x base depth x waste factor. The examples on the page are there so you can compare your inputs with a worked example before copying the answer.
The tool rounds height up to whole block courses, rounds length up to whole blocks per course, multiplies those counts, adds waste, then estimates cap blocks and base trench volume.
How to read the answer
Read the wall block count first, then check courses and blocks per course so you can spot a strange block size or wall height entry.
- Wall blocks is the rounded-up count after courses, blocks per course, and waste.
- Courses shows how many block rows the wall height needs.
- Blocks per course shows the straight-run layout before caps.
- Cap blocks is based on wall length and cap length, then rounded up with waste.
- Base gravel is the leveling/base trench volume in cubic feet and cubic yards.
Common mistakes to avoid
Most bad retaining-wall estimates come from using the wrong block face size, forgetting caps, treating base gravel as drainage gravel, or trusting material math as engineering.
- Do not use square feet alone when whole courses, caps, and waste matter.
- Do not use this as a safety design for a retaining wall.
- Do not count the base gravel result as drainage gravel behind the wall.
- Do not forget drainage stone, drain pipe, filter fabric, geogrid, backfill, compaction, setback, embedment, and soil pressure.
- Check permits and engineering rules, especially for taller walls, slopes, driveways, fences, buildings, water problems, or weak soils.
Quick example
For a 40 ft long by 3 ft high wall using 16 by 6 inch blocks, the calculator rounds the wall to 6 courses and 30 blocks per course. With 5% waste, that becomes 189 wall blocks.
If the cap blocks are 12 inches long, the same wall needs 42 cap blocks with 5% waste. A 6 inch deep by 18 inch wide base trench for 40 ft needs 31.5 ft3 of base gravel, or about 1.17 yd3.
Why courses matter
A wall that is 3 ft high is 36 inches high. With 6 inch blocks, that is exactly 6 courses. If your wall height does not divide cleanly by the block height, the calculator rounds up because you cannot buy a fraction of a block row.
Square feet vs block count
Wall square feet is useful for a rough size check, but it is not the same as a block order. Block length, block height, caps, curves, cuts, and waste all change the count.
What the base result leaves out
The base gravel number is only for the leveling/base trench you enter. It does not include drainage stone behind the wall, drain pipe, geotextile fabric, reinforced backfill, geogrid, or extra excavation.
When the calculator is not enough
Retaining walls hold soil, so small material math can become a safety problem when the site is complicated. Get local guidance before relying on a simple estimate for tall walls, poor soil, slopes above or below the wall, driveways, fences, buildings, terraced walls, drainage problems, utilities, frost, or any wall that needs a permit.
Useful related checks
If you are also planning block walls, gravel, or core fill, use the related tools to keep each estimate separate instead of mixing every material into one number.
Research and references
These references help check segmental retaining wall terms, base and drainage cautions, and unit conversions used by the guide.
Worked examples for Retaining Wall Calculator
189 wall blocks, 42 caps, about 1.17 yd3 base gravel
156 wall blocks, 26 caps, about 0.43 yd3 base gravel
6 courses
31.5 ft3, about 1.17 yd3 base gravel
FAQ in plain language
When should I use the Retaining Wall Calculator?
Use it when your task matches one of these common needs: Estimate block count for simple segmental retaining walls. Plan cap blocks for the top course. It works best when you already know the measurements, amounts, units, or options the page asks for.
What is the Retaining Wall Calculator doing with my inputs?
In plain language: Courses = ceiling(wall height x 12 / block height). Blocks per course = ceiling(wall length x 12 / block length). Wall blocks = courses x blocks per course x waste factor, rounded up. Cap blocks use wall length and cap length. Base gravel = wall length x base width x base depth x waste factor. The examples on the page are there so you can compare your inputs with a worked example before copying the answer.
What do the main Retaining Wall Calculator inputs mean?
Wall length and height: the finished face size of the retaining wall, measured before adding hidden buried courses or curves. Block size: the visible face length and height of one segmental wall block from the supplier label or product sheet. Cap length: the length of one cap block along the top of the wall. Base depth and width: the compacted gravel trench dimensions used for the base estimate, not the drainage stone behind the wall. Waste percent: extra blocks and gravel for cuts, broken units, end pieces, curves, base cleanup, and small measuring errors.
How should I read the Retaining Wall Calculator answer?
Read the headline estimate first, then check the material, waste, coverage, and unit lines. For project tools, the supporting lines are often the difference between a rough idea and a list you can actually shop from.
What should I double-check before trusting the answer?
This counts materials for simple segmental wall planning. It does not design a safe retaining wall. Soil, drainage, surcharge loads, slopes, setback, embedment, geogrid, base compaction, frost, utilities, permits, and local code can change the real plan. Also check the unit, scale, mode, and result limit because small input changes can change the answer.
Why does a retaining wall need a base gravel estimate?
Segmental retaining walls usually sit on a compacted base. The calculator estimates the base trench volume so you can plan material separately from wall blocks.
How does the Retaining Wall Calculator count blocks?
It rounds wall height up to whole courses, rounds wall length up to blocks per course, multiplies them, then adds the waste percent. This is a layout estimate, not a cut sheet.
